CELLTRON​ ​Secure Power

$1,390.00

Suitable for: Security systems, Fire alarms, Emergency lighting, Mobility vehicles, Small UPS systems

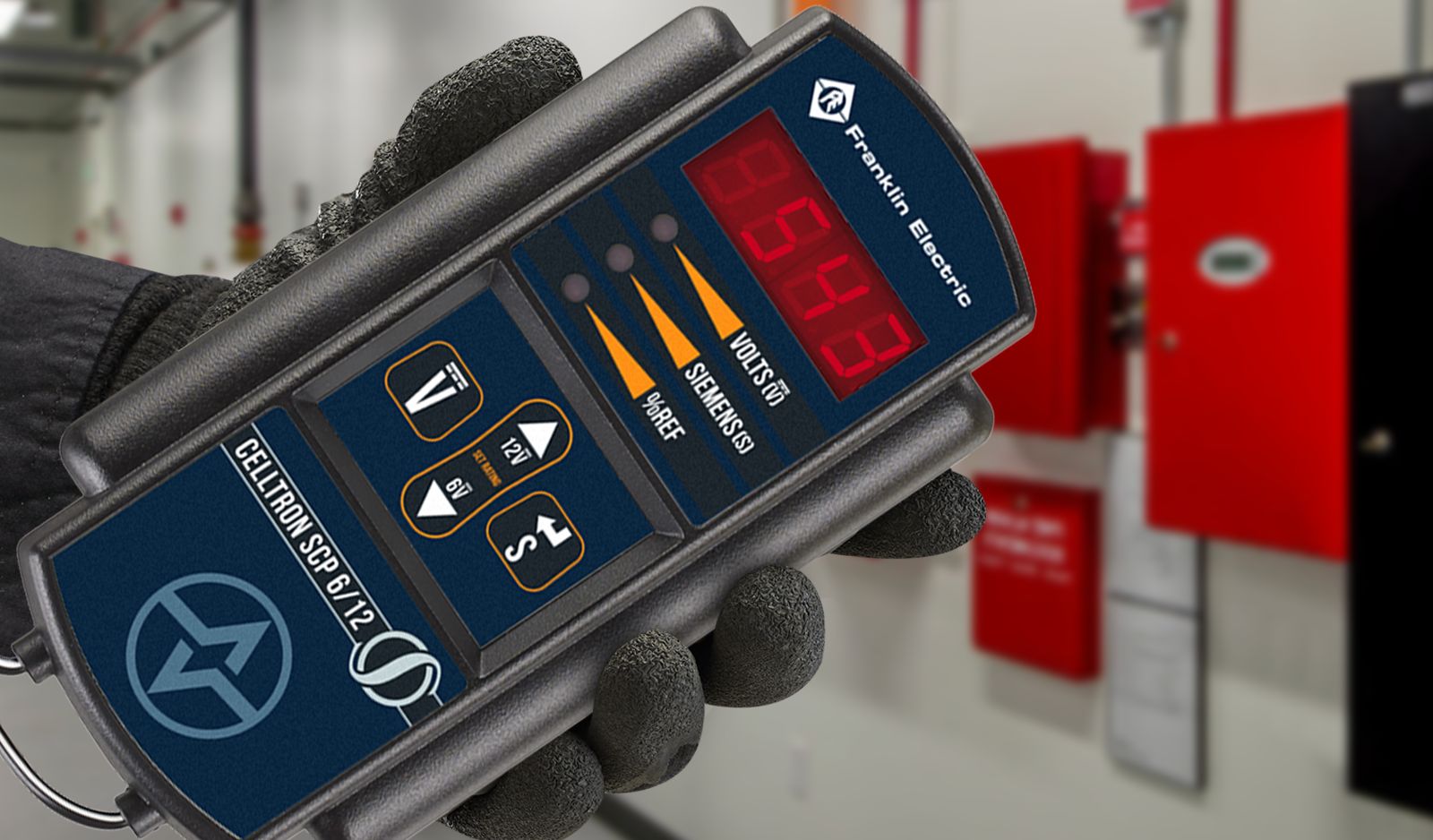

The CELLTRON™ Secure Power Battery Tester provides a simple method to screen the state-of-health of popularly sized 6 volt and 12 volt sealed lead-acid batteries for security systems, emergency lighting, mobility vehicles, and uninterruptible power supplies.

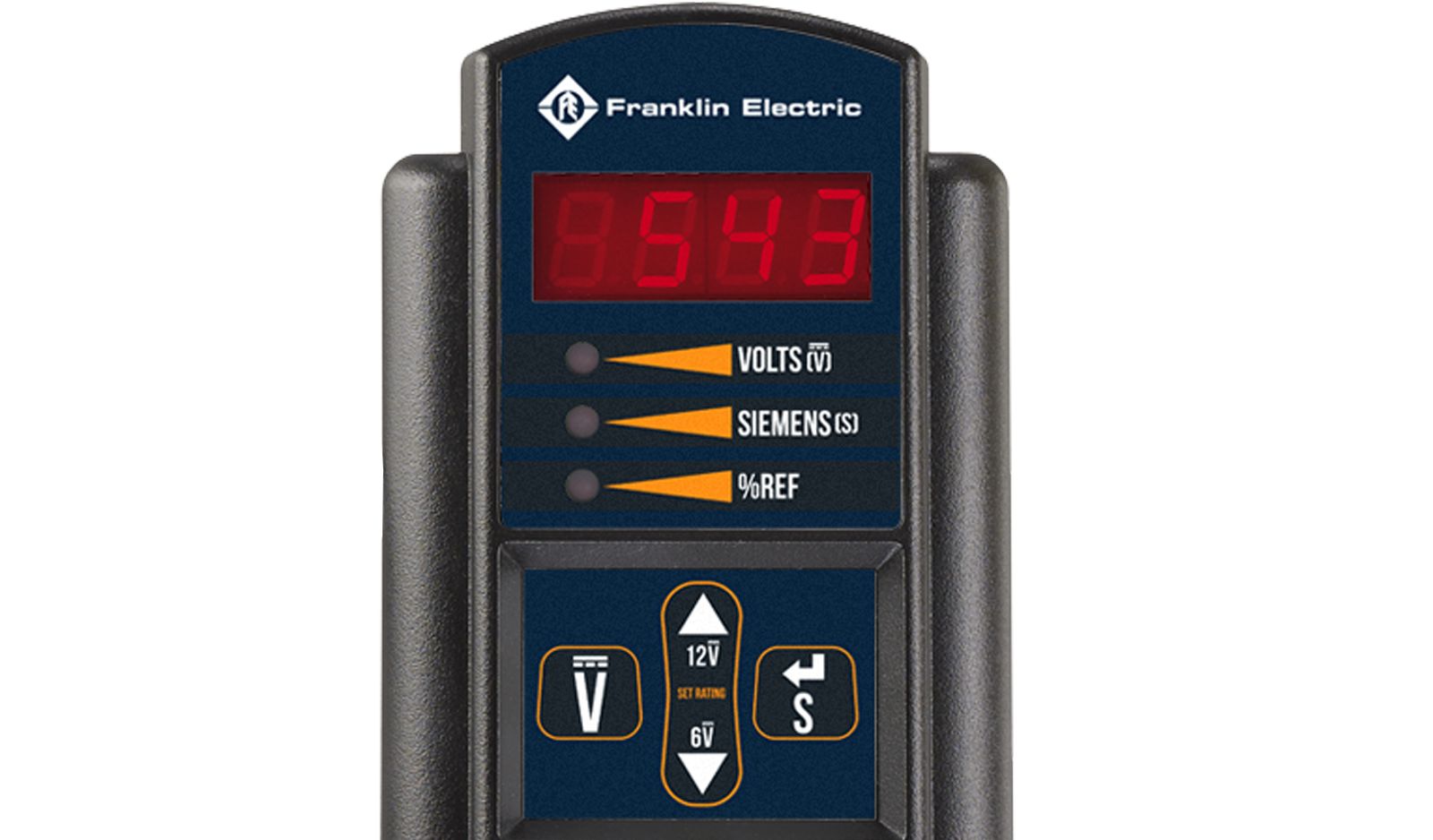

Battery voltage and conductance are displayed in less than 10 seconds Tests 6V and 12V batteries

Accurate Conductance Testing for lead acid batteries
Utilizes enhanced conductance technology, a method recognized by IEEE standards, for the testing of lead-acid batteries with proven correlation to battery capacity.

6/12V Battery Testing
Provides off-line testing of 6 and 12 volt nominal batteries from 1.2 to approximately 55 ampere hours in capacity.

NFPA-72 Compliance
An easy and economical means to execute routine testing that meets NFPA-72 standards requiring routine cell/unit voltage and Ohmic testing for batteries in fire alarm systems.

Applications
Sealed Lead Acid Batteries for security systems, emergency lighting, mobility vehicles, UPS and more

Voltage Range:                 6.0 to 14.0 VDC
Conductance Range:     20 – 1200 MOhms/Siemens
Capacity Range:               1.2 Ah to 55 Ah
Operating Temp:             18 to 50 degrees C

Battery Type

, ,

FEATURES

The SCP 6/12 helps to ensure the operation of critical systems despite power loss. The SCP 6/12 utilizes patented conductance technology, a passive method that minimizes technician risk
and battery stress. A conductance method recognized by IEEE standard for the testing oflead-acid batteries with proven orrelation to battery capacity. Prioritizes battery replacements and additional testing for cost-effective system management.

BROCHURE

SCP Brochure

MANUAL

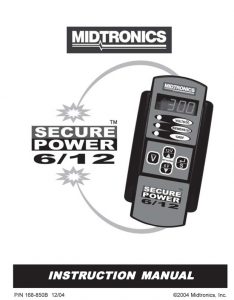

SCP Manual

Available on back-order
